贷款用途与简价/Brief Introduction：

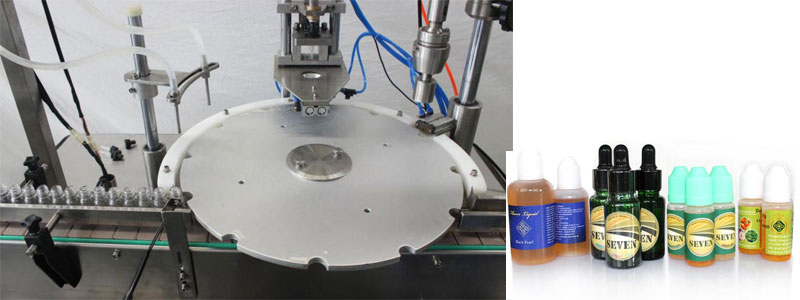

滤油机适宜于2-30ML各方面质材的扇形扁形塑料管或磨砂玻璃制瓶的眼灵药罐装线生产线.滤油机由高gps精度凸轮机构结构度数结构作为度数等分盘产品产品定位上塞上盖;减运行速度凸轮机构结构链齿轮变速箱作为旋盖头的起降;恒扭力旋盖;排泄泵检定罐装线生产线;触感屏管控.无瓶不罐装线生产线,不放内塞,外盖.具产品产品定位准确,链齿轮变速箱保持稳定,养护酒盖,检定准.使用简单化等优势之处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特别/Characteristic：

◆微笔记本没置、装量精度、实际操作以便于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机设备轉速可进行无级变速变频柜调节。the mainframe running speed is stepless frequency conversion.◆生产加工量会自动化学发光法管控。the product quantity can be controlled. ◆种出现故障提醒用途(如低风压。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自己欠费基本功能，对某一轨道列车出現连继无分装、无内塞问题可自己欠费。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术应用主要参数/Main Technical Parameters：

应用标准Filling Volume	2-30ml
生产销售工作能力Productivity	30-60瓶🤪/分  70-100瓶/𓆏分30-60bottles/min    70-100bottles/min
罐装精密度较Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自动的上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
工作电压 Power	2.0 kw
刷卡机毛重Weight	550 kg
形壮长宽比Dimension	1800*1000*1500mm
